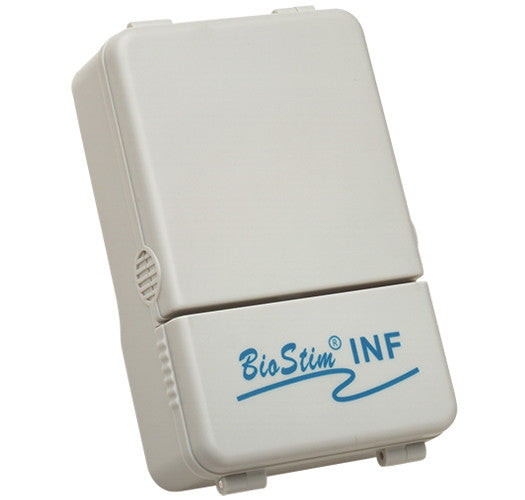

BioStim® INF – Digital Inteferential Stimulator

$ 0.00

Overview

BioMedical Life Systems, Inc. is proud to announce the newest generation in its Interferential Device line, the digital BioStim® INF. Three pre-programmed sweeps; 1-10 Hz, used for Edema Reduction, 80-150 Hz used for Pain Relief and 1-150 Hz for total treatment allow for easy set up and patient instruction. The Device offers bipolar stimulation using two electrodes where the interferential stimulation is already “mixed” or Full Interferential stimulation with the use of four electrodes. The device has a timer for the desired treatment time and comes with a wall adaptor or operates on four AA batteries. Device comes standard with two color lead wires, electrodes (4), batteries, instruction booklet, carrying case and wall adaptor.

Requires Prescription

BioStim® INF Downloadable Spec Sheet

General Specifications

Size:	3.25" x 2.25" x 1 5/8" (82 mm x 70 mm x 45mm)
Weight:	8 oz (226 grams)
Carrier Frequency:	4000 Hz, fixed
Interference Frequency:	4001-4150 Hz, adjustable
Difference Frequency:	1-150 beats per second, adjustable
Bipolar Stimulation:	Channel 1
Output Current:	0-66 milliamps peak to peak with 500 ohm load
Output Voltage:	0-33 Volts peak to peak with 500 ohm load
Waveform:	Pulsed Sine Wave
Pulse Width:	125 microseconds for each phase
Max. Charge per Cycle:	12.5 microcoulombs
Power Supply:	4 AA (L00083) batteries or Medical Grade Wall Adaptor
Low Battery Indicator:	Indicates when batteries are low
Four Frequency Shifts:	Continuous, 1-10 Hz over 6 seconds and 80-150 Hz over 8 seconds and 1-150 Hz over 10 seconds.
Tolerance:	+/-1%

Output parameters are across a 500 ohm resistance.
