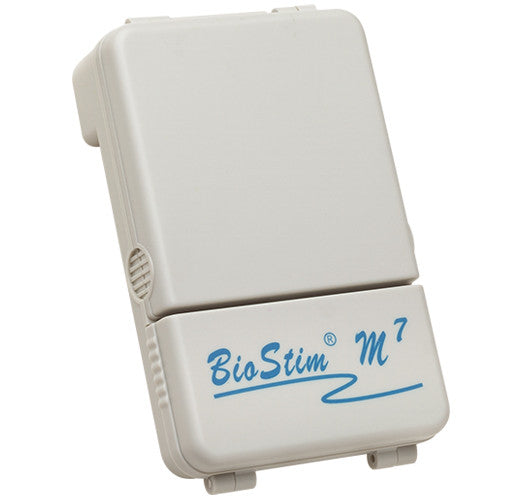

BioStim® M7 – Digital TENS unit
$ 0.00
BioMedical Life Systems Inc., Digital, BioStim® M7 TENS Device has seven programmable functions; Continuous, Width Modulation, Rate Modulation, Rate and Width Modulation, SD1, SD2 and Cycled Burst. The device has a Patient Lock System that, when activated prevents the patient from changing any of the set parameters. When the Patient Lock Systems is turned off, a Patient Compliance Meter is displayed showing how long the device was used. A timer allows the patient to use the device for a specified period of time. The two-channel device incorporates touch proof design and is run by two AA Batteries. Device comes with lead wires, electrodes (4), batteries, instruction booklet and carrying case.
Requires Prescription
General Specifications
| Size: | 3.25” x 2.25” x 1 5/8” (82 mm x 70mm x 45mm) |
| Weight: | 8 oz (266 grams) |
| Channels: | Dual |
| Waveform: | Asymmetrical rectangular biphasic (TENS) |
| Pulse Rate (adj.): | 1- 200 Hz |
| Pulse Width (adj.): | 10 - 250 µs |
Stimulation Modes |
|
| Continuous: | Constant Stimulation |
| Rate Modulation: | 50% decrease/increase of set value over a 5 second cycle |
| Width Modulation: | 50% decrease/increase of set value over a 5 second cycle |
| Rate/Width Modulation: | 50% decrease in set value over a five second period. As rate increases, width decreases. |
| SD1: | Increase of set pulse width 40%, decrease of set pulse rate 45% and decrease of amplitude 10% over a 3 second period. Values return to original settings over the next 3 seconds. |
| SD2: | Increase of set pulse width 60%, decrease of set pulse rate 90% and decrease of amplitude 13% over a 6 second period. Values return to original settings over the next 6 seconds. |
| Cycled Burst: | 2.5 seconds on. 2.5 seconds off. Adjustable Rate and Width. |
| Output Voltage: | 49 Volts peak to peak |
| Intensity (adj.): | 0-98 mA |
| Power Supply: | 2 AA Batteries |
| Timer | Constant, 15, 30 or 60 minutes |
Data was recorded across a 500 ohm resistance load.
