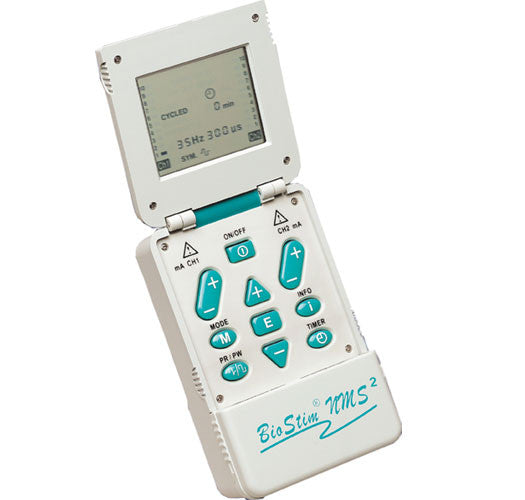

BioStim® NMS2 – Digital Muscle Stimulator (E-Stim)
$ 0.00
The BioStim® NMS2!
Features included in the BioStim® NMS2:
- Extremely flexible, powerful, comfortable and user friendly!
- Functions like a T.E.N.S. in constant mode to achieve pain relief. The patient or therapist can easily toggle from pain relief settings, to a muscle building program with the push of one button.
- Adjustable Constant, Cycled and Reciprocal open programs. (Holds custom settings).
- There are (8) user friendly pre-set therapy settings to accommodate a wide population range from pediatric applications to professional athletes.
- The device holds up to three custom programs and it is easy for the patient to toggle between them. The custom programs remain set into the device until they are changed or reset.
- The Patient Compliance meter starts recording how many hours the device has been used from the first time it is issued to the patient, until the device is reset by the dealer or therapist.
- The adjustable pulse width setting enables patients of all tolerance levels to achieve success in their rehab program.
Requires Prescription
BioStim® NMS2 Downloadable Spec Sheet
General Specification
| Dimensions: | 3.9" x 2.6" x 1.3" (99mm x 65mm x 33 mm) |
| Weight: | 8 oz (266 grams) |
| Channels: | Dual |
| Waveform: | Symmetrical biphasic square (SYM) and Asymmetrical biphasic square (ASYM) |
| Pulse Rate: | Adjustable 1-120 Hz (Hertz); pulses/sec |
| Pulse Width: | Adjustable 50-400 μS (microseconds) |
| Ramp On: | 0-10 seconds |
| Ramp Off: | 0-10 seconds |
| On Time: | 0-99 seconds |
| Off Time: | 0-99 seconds |
| Delay: | 0-99 seconds |
| Patient Timer: | 0-99 minutes |
| Modes: | 1. Constant 2. Cycled 3. Reciprocal (adjustable) |
| Therapies: | 8 Preprogrammed (fixed) |
| Intensity/Output Voltage: | Continuously adjustable from 0-120mA peak (0-60V) +/- 10% |
| Tolerance: | All parameters +/- 2% unless otherwise noted |
| Power Supply: | 4 AA Batteries, type LR6 |
Data was recorded across a 500 ohm resistance load.
