Impulse® 3000 – TENS unit
$ 0.00
BioMedical Life Systems is proud to introduce the Impulse® 3000.

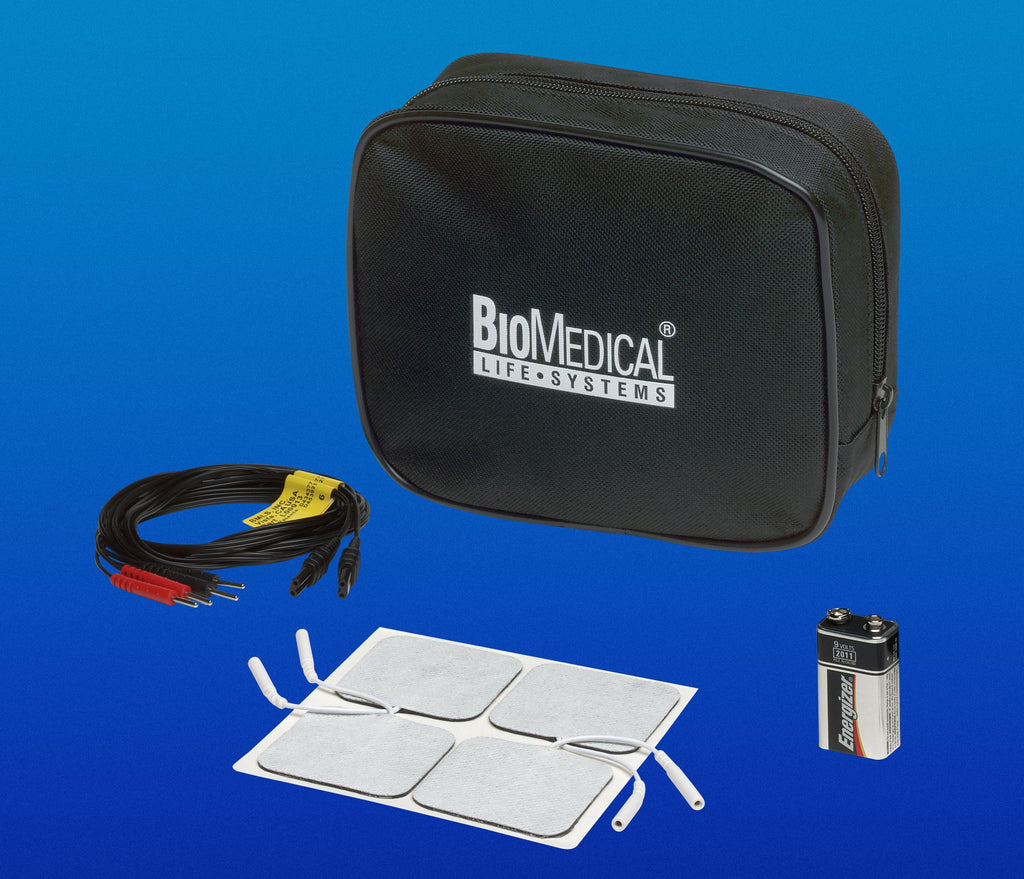

The new ergonomically designed device has adjustable pulse rate and pulse width, and has three modes of operation; constant, width modulation, and burst. The new design of the device incorporates a sliding amplitude control cover for safety, and a permanently attached 9 volt battery cover to prevent loss. The 9 volt battery compartment has been redesigned for simple insertion and removal of the battery. To provide comfort while wearing, the belt clip has been positioned horizontally. Device comes with lead wires, electrodes (4), battery, instruction booklet and carrying case.
Requires Prescription
Impulse® 3000 Downloadable Spec Sheet
General Specification
| Dimensions: | 3.9" x 2.75" x 1" (99mm x 70mm x 25mm) |
| Weight: | 4.6 oz (132 g) |
| Power Source: | 9V Battery, E-block, type 6F22 |
| Channels: | Dual |
| Waveform: | Asymmetrical, biphasic square-wave |
| Frequency: | 2-150 Hz (Hertz or pps) |
| Impulse Width: | 50 - 250 microseconds (µs) adjustable |
| Output: | Constant Current |
| Continuous: | Continuous stimulation |
| Burst: | 8 pulses per burst/2 bursts per second |
| Modulation: | Decrease/increase of set width of 50% over a five-second period |
| Number of electrodes/Leadwires | 4 |
| Tolerances: | +/- 10% |
