Impulse® EMS D7 – Digital Muscle Stimulator (E-Stim)

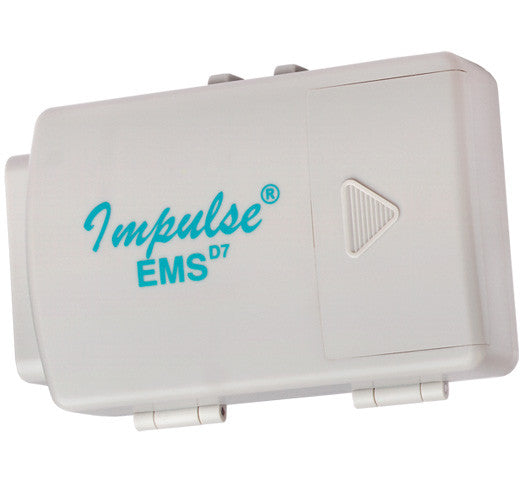

BioMedical Life Systems is proud to introduce its new generation in Electro-Therapy Devices, the Impulse® EMSD7 Digital Muscle Stimulator Device. The new look of the device incorporates a “Clam Shape” design that when closed, covers the LCD screen and control buttons.
The inside flip top cover includes an instruction diagram. The instructional diagram shows different wave form patterns to assist the user through three modes of operation; constant, cycle, and reciprocal. On Time, Off Time, On Ramp and Off Ramp are available. A timer allows the patient to use the device for a specified period of time and a low battery indicator light illuminates when the AA batteries need to be changed. If the device is not correctly attached to the patient, the amplitude does not increase. The device has a patient lock that also can be used as a patient compliance meter.
Impulse® EMS D7 Downloadable Spec Sheet
General Specs
| Size: | 4.2" x 2.9" x 1.4" (107cm x 74mm x 40mm) |
| Weight: | 3.5 oz (94.97 grams) |
| Channels: | Dual |
| Waveform: | Biphasic Rectangular |
| Pulse Rate (adj.): | 20, 25, 30, 35, 35, 40, 45, 50, 55, 60, 100, 105, 110 Hz |
| Pulse Width: | 100 or 300 µs |
| Stimulation Modes: | 1. Continuous Stimulation 2. Cycled 3. Reciprocating |
| Five Preprogrammed Therapies: |
|
| Output Voltage: | 50 Volts peak to peak |
| Intensity (adj.): | 100 mA peak to peak over 500 ohm load |
| Power Supply: | 2 AA Batteries |
