Impulse® TENS D5 – Digital TENS unit
Overview

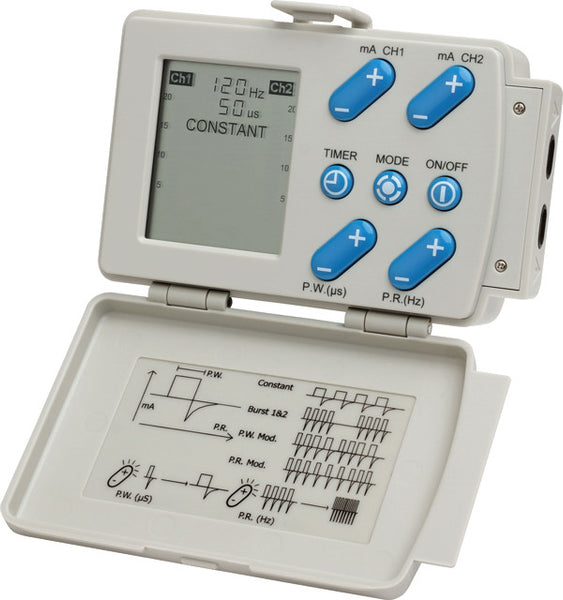

BioMedical Life Systems is proud to introduce its new generation in Electro-Therapy Devices, the Impulse® TENSD5 Digital TENS Device. The new look of the device incorporates a “Clam Shape” design that when closed, covers the LCD Screen and Control Buttons.
The inside flip top cover includes an instruction diagram to guide the user through five modes of operation; constant, width modulation, rate modulation and two different types of burst. A timer allows the patient to use the device for a specified period of time and a low battery indicator light illuminates when the AA batteries need to be changed. If the device is not correctly attached to the patient, the amplitude does not increase. Device comes with lead wires, electrodes (4), batteries, instruction booklet and carrying case.
Requires Prescription
Impulse® TENS D5 Downloadable Spec Sheet| Size: | 4.2" x 2.9" x 1.4" (10.7cm x 7.4cm x 4cm) |
| Weight: | 3.35 oz (94.97 grams) |
| Power Source: | 2 AA batteries |
| Channels: | Dual |
| Waveform: | Symmetrical, biphasic square wave |
| Pulse Rate (Hz): | 1 120 Hz (Hertz or pps) adj. |
| Pulse Width (µS): | 25 250 miscroseconds (µS) adjustable |
| Output: | Constant current |
| Constant: | Conitnuous stimulation. Pulse rate/Pulse Width are adjustable |
| Pulse Rate Modulation: | Pulse Rate modulates from 100Hz down to 20Hz over a 15 second cycle (7.5 seconds down, 7.5 seconds up). Pulse Width is adjustable. |
| Pulse Width Modulation: | Pulse width modulates from 125-250µS and back down over a 5 second cycle (2.5 seconds down, 2.5 seconds up). Pulse Rate is adjustable. |
| Burst I: | One second ON. One second OFF. Pulse Rate and Pulse Width are adjustable. |
| Burst II: | Seven Pulses per burst, 2 bursts per second. Pulse Width is adjustable |
| Output: | Constant current |
| Intensity: | Continuously adjustable from 0-100 mA peak to peak |
| Output Voltage: | Continuously adjustable from 0-50 V peak to peak |
| Tolerances: | +/-1% |
