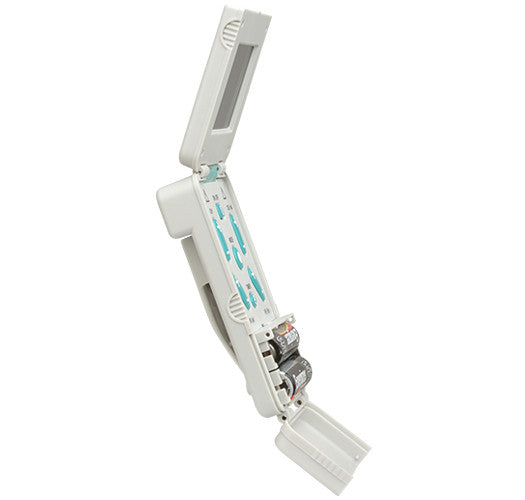

BioStim® Plus – Digital TENS unit
$ 0.00
The NEW Generation of Electro-Therapy Devices, the BioStim® Series
It’s compact size and user friendly programming features make the BioStim®’s design unique among Electro-Therapy Devices. This two channel device incorporates touch proof design, digital keypad, large LED display screen, four preset protocols, and is run on two AA batteries. Device comes with lead wires, electrodes (4), battery, instruction booklet and carrying case.
Pre-Programmed and Programmable Protocols.
- Continuous
- Width Modulation
- Burst
- Cycled Burst
The BioStim® Plus also Includes the following features:
- Timer
- Large (2”) LCD Display Screen
- Patient Lock/Compliance Meter
Requires Prescription
BioStim® Plus Downloadable Spec Sheet
General Specifications
| Size: | 3.9" x 2.75" x 1" (9.90 cm x 6.98 cm x 2.54 cm) |
| Weight: | 4.9 oz (132 grams) |
| Channels: | 2 |
| Waveform: | Asymetrical, biphasic square-wave |
| Intensity: | Continuously adjustable from 0-98 mA peak |
| Frequency: | 1 - 150 Hz (Hertz or pps) |
| Impulse Width: | 10 - 250 microseconds (µs) adjustable |
| Modes: | C (Continuous) Continuous stimulation M1 (PW Modulation) Decrease/increase of set width of 50% over a five-second period B1 (Burst1) 0.5 seconds on, 0.5 seconds off. Adjustable pulse rate from 1 - 150 Hz. B (Cycled Burst) 8 pulses per burst/2 bursts per second |
| Power Supply: | 2 AA Batteries, E-block, type 6F22 |
Data recorded across a 500 OHM resistance load.
